Diamond Audio M1SRT 1-Inch Short-Throat Tweeter – 100W RMS, High-Output Motorsport Design

Description

Diamond Audio 1″ Motorsport High Output Short Throat Tweeters M1SRT

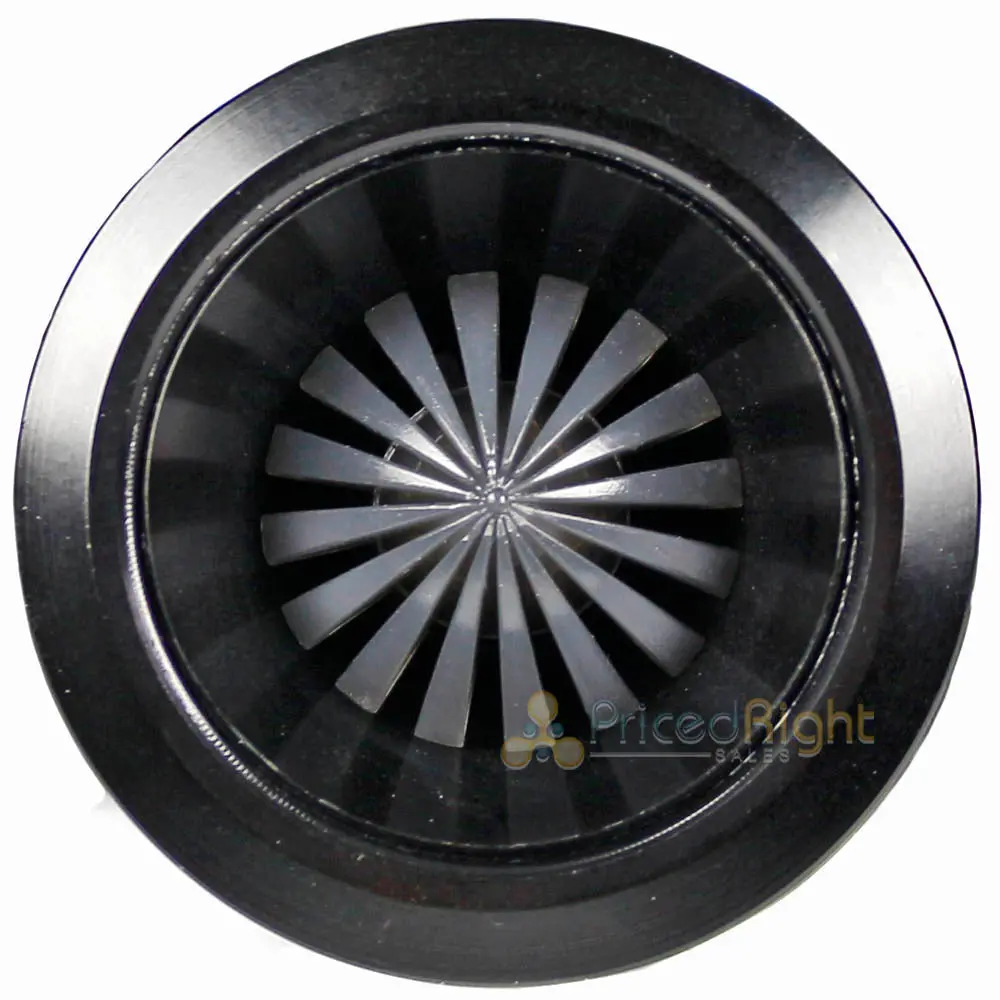

These high output short throat tweeters have a unique phase plug that has been optimized to produce the best sound quality possible. Its short throat and composite rubber mounting frame give you a variety of different mountable options to place them where you see fit. Able to pump out 100 Watts and a radial slit phase plug, this tweeter has ready to give you great audio that you will enjoy everywhere you go.

Features

• 1″ Compression extreme output tweeter-short horn version
• 50W RMS/ 100W Max power handling
• 107dB Sensitivity
• Composite rubber mounting frame
• 12dB Crossover included for maximum protection
• Radial slit phase plug for better response
• Re-buildable diaphragm replacement design
• Frequency response: 3K-20KHz
• Nominal impedance: 4 Ohm

Physical Specifications:

• Front of Horn to Magnet Depth: 0.83″ (21mm)
• Depth Front to Back Magnet: 1.8″ (45.6mm)
• Overall Width: 2.28″ (58mm)
• Mounting Width: 1.68″ (42.50mm)
Overall Height: 1.87″ (47.60mm)
