Diamond Audio M075T 1-Inch Shallow-Mount Tweeters – Motorsport-Grade High-Power 100W Peak

Description

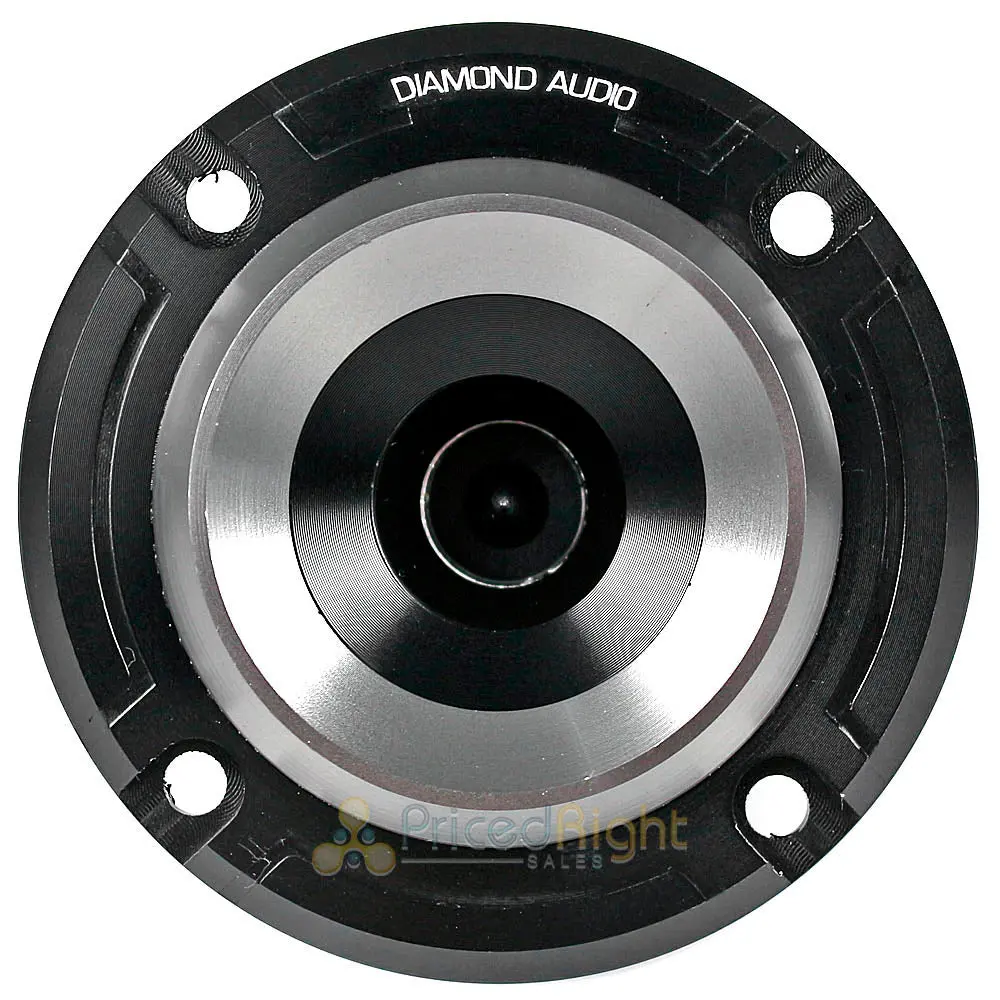

Diamond Audio 1″ Motorsport High Output Shallow Tweeters M075T

These high output shallow tweeters have a unique phase plug, horn flare design that has been optimized to produce the best sound quality possible. Its shallow mount diaphragm gives you a variety of different mountable options to place them where you see fit. Able to pump out 100 Watts and a radial slit phase plug, this tweeter has ready to give you great audio that you will enjoy everywhere you go.

Features

• 1″ Compression extreme output tweeter-short horn version
• 50W RMS/100W Max Power Handling
• 107dB Sensitivity
• Composite rubber mounting frame
• 12dB Crossover included for maximum protection
• Radial slit phase plug for better response
• Re-buildable diaphragm replacement design
• Sensitivity: 107dB 1W/1M
• Frequency response: 2.5K-20KHz
• Nominal impedance: 4 Ohm
• Cut-out Diameter: 2.09″
• Front of the horn to magnet depth: .39″
• Depth front to back magnet: 1.38″

Physical Specifications:

 • Mounting Depth: 1.39″
• Cut-Out Diameter: 2.09″
• Over-All Diameter: 2.95″
Over-All Height: 1.57″
