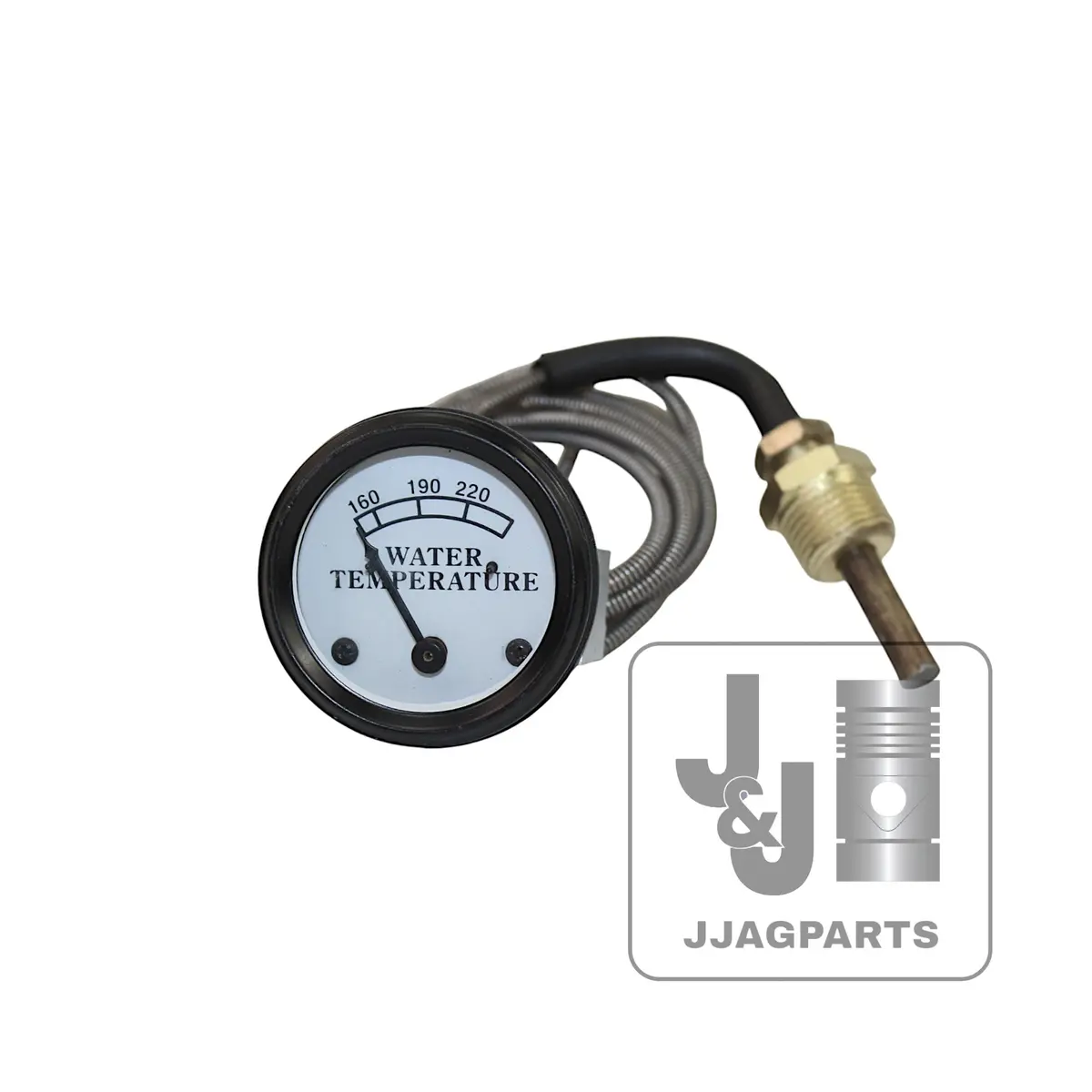

White-Face Water Temperature Gauge Compatible with John Deere Tractors (AM610T, AM1609T, AA1342R)

Description

Quality Aftermarket Water Temperature Gauge
For John Deere Tractor Models:
A, B, AI, AO, AP, BO, BR, D, G, H, M, MC, MI, MT, R
All listed models up to Mid 1952
Specifications

• Metal base
• Glass lens
• Black bezel
• 72 inch capillary lead (Please measure the length required for your tractor before ordering)
• Has 5/8-18 UNF end with 1/2″ NPT pipe bushing
• This gauge has a plain face without the John Deere logo as shown above. Can also be used on later models but the face plate color is not correct for tractors after mid 1952.
• Side note for M series John Deeres, due to the sensor location on the water manifold the following serial numbers for this temperature gauge may read hotter than normal on the gauge; M up to SN: 45409, MC up to SN: 15062, MI up to SN: 10649, MT up to SN: 31936

Replacement Numbers
AA1342R
AM1609T
AM610T
