Replacement Fuel Gauge for John Deere 1010 and 4020 Tractors – Direct Fit for AR46271, RE54427, R34262

Description

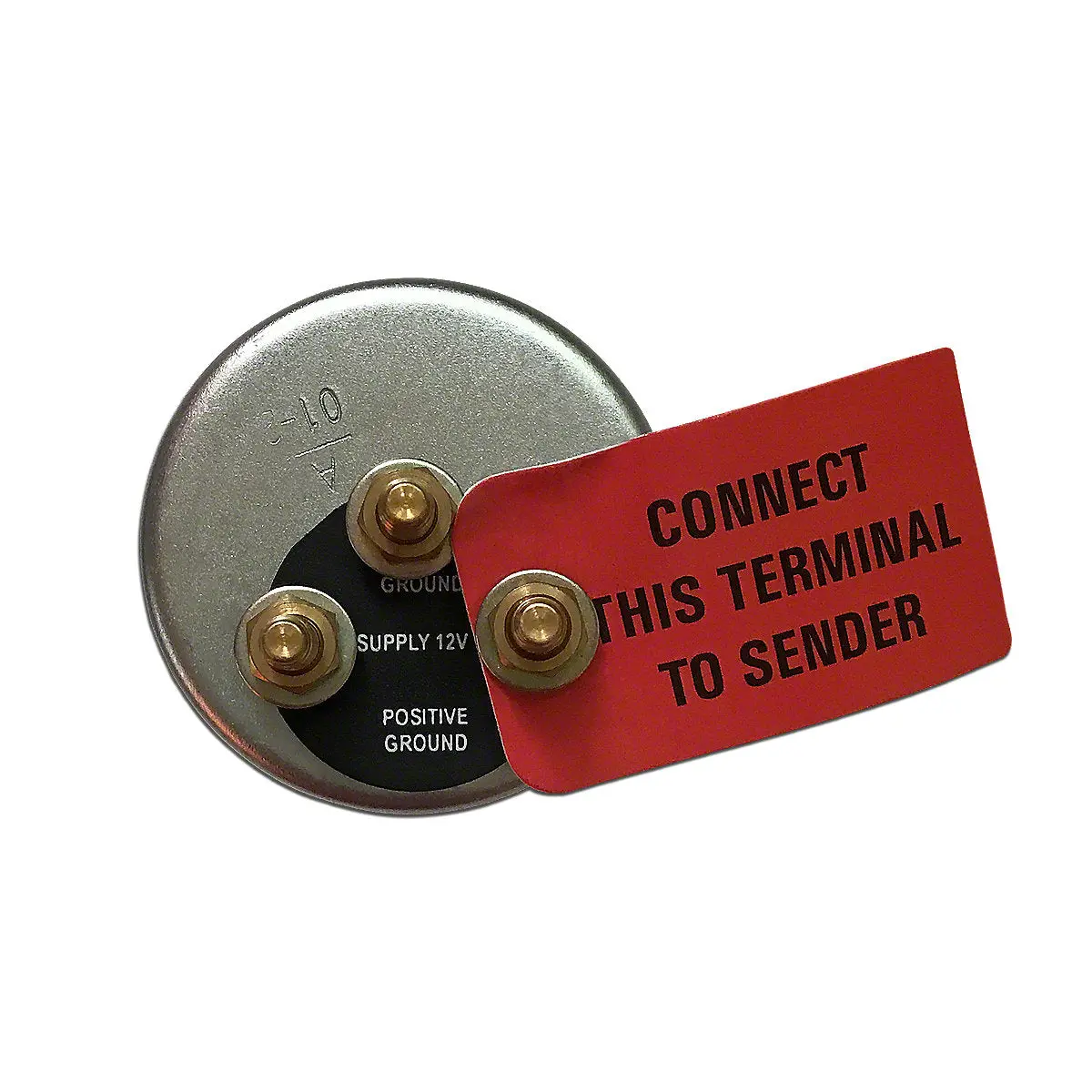

Quality Aftermarket 12-volt Positive Ground Fuel Gauge
Fits John Deere 500; 1010, 2010 both SN: 42001 & up, (3020 to SN: 122999, 4020 to SN: 200999), 5010 SN: 8000 & up, 5020 up to SN: 24999, 8020; JD Industrial: 440 all to Sn: 49999, Skidder; 600 Tractors
Specifications 12-Volt positive ground1.205″” housing depth2.03″” housing diameterMounts into rear of dash 0 – 30 Ohms resistance
For maximum performance, it is always best to order the fuel sending unit and the matching fuel gauge as they will have the correct Ohms and voltage.
Gauge must be grounded to work properly; in some cases you may have to run an extra ground wire from the threaded clamp terminal to an existing bolt to get a proper ground.
Replacement Numbers AR46271, RE54427, R34262, AT27153
