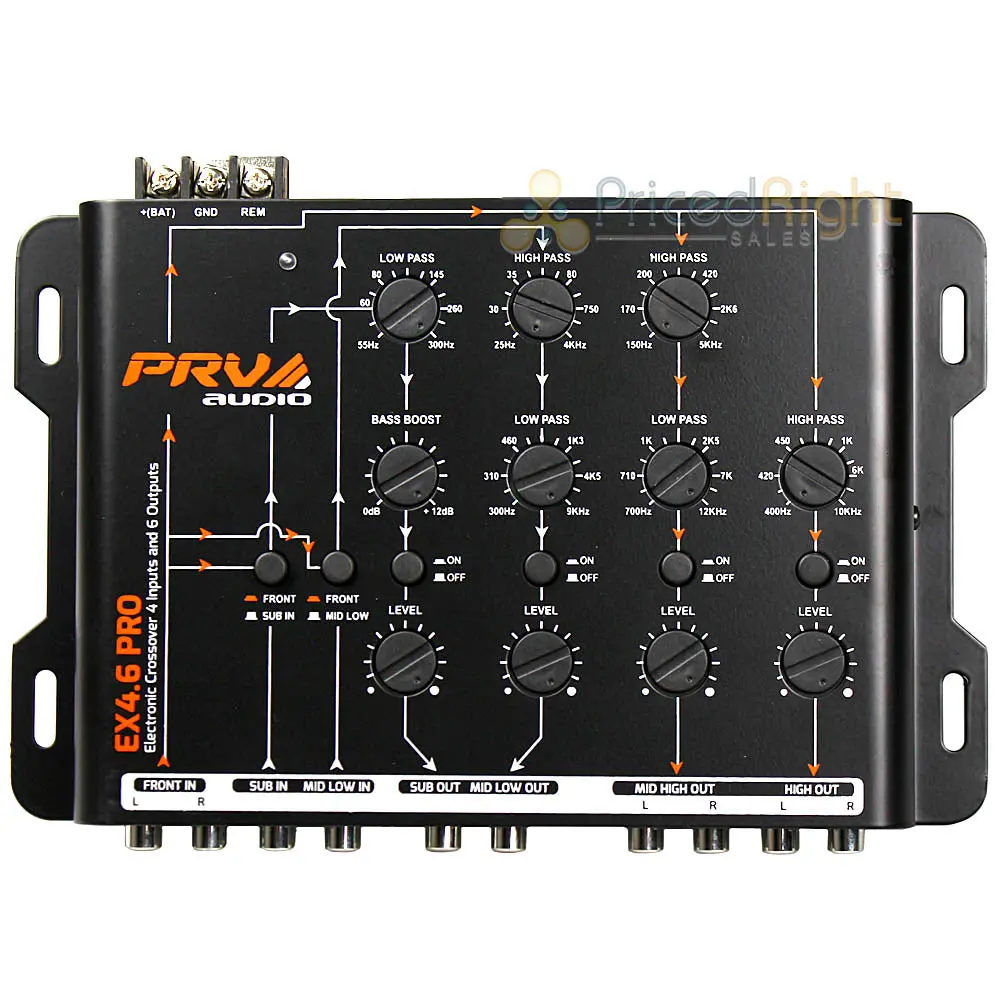

PRV EX4.6 Pro Professional 4-Way Electronic Crossover with 4 Inputs, 6 Outputs, and 9V RMS Operating Voltage

Description

PRV 4 Way Electronic Crossover 4 Inputs and 6 Outputs EX4.6PRO

Bringing innovation and technology to the automotive sound market, PRV Audio launches the EX4.6 PRO electronic crossover, giving you the power to customize your sound with a wide frequency of filter adjustments. Featuring 4-way adjustable high pass and low pass filters and also output level control on each channel, plus adjustable bass-boost option on the Sub Out channel.

Features

• High Out Channel: High Pass – 400Hz – 10KHz (12dB/8a)
• Mid High Out Channel: High Pass – 150Hz – 5KHz (12dB/8a)
• Mid Low Out Channel: High Pass – 25Hz – 3KHz (12dB/8a)
• Sub Out Channel: Low Pass – 50Hz – 250KHz (12dB/8a) Bass Boost – 25Hz – 110Hz (0 – +12dB; 45Hz)
• Maximum Output Voltage: 9V RMS
• Maximum Input Voltage: 4V RMS
• Signal to Noise: >90dB
• Input Impedance: 10K Ohms
• Harmonic Distortion:< 0.02% THD
• Channel Separation: > 80dB
• Frequency Response: 20Hz-200KHz
• Supply Voltage: 10V – 16V DC
• Current Consumption: 200mA
• Impedance Output: 470 Ohms
• Dimensions (H x W x L): 1.30″ x 9″ x 6.30″
