PRV Audio TW100SD-4 – 2-Inch Soft-Dome Tweeter Pair, 100W RMS, 4-Ohm Impedance for Car Audio Systems

Description

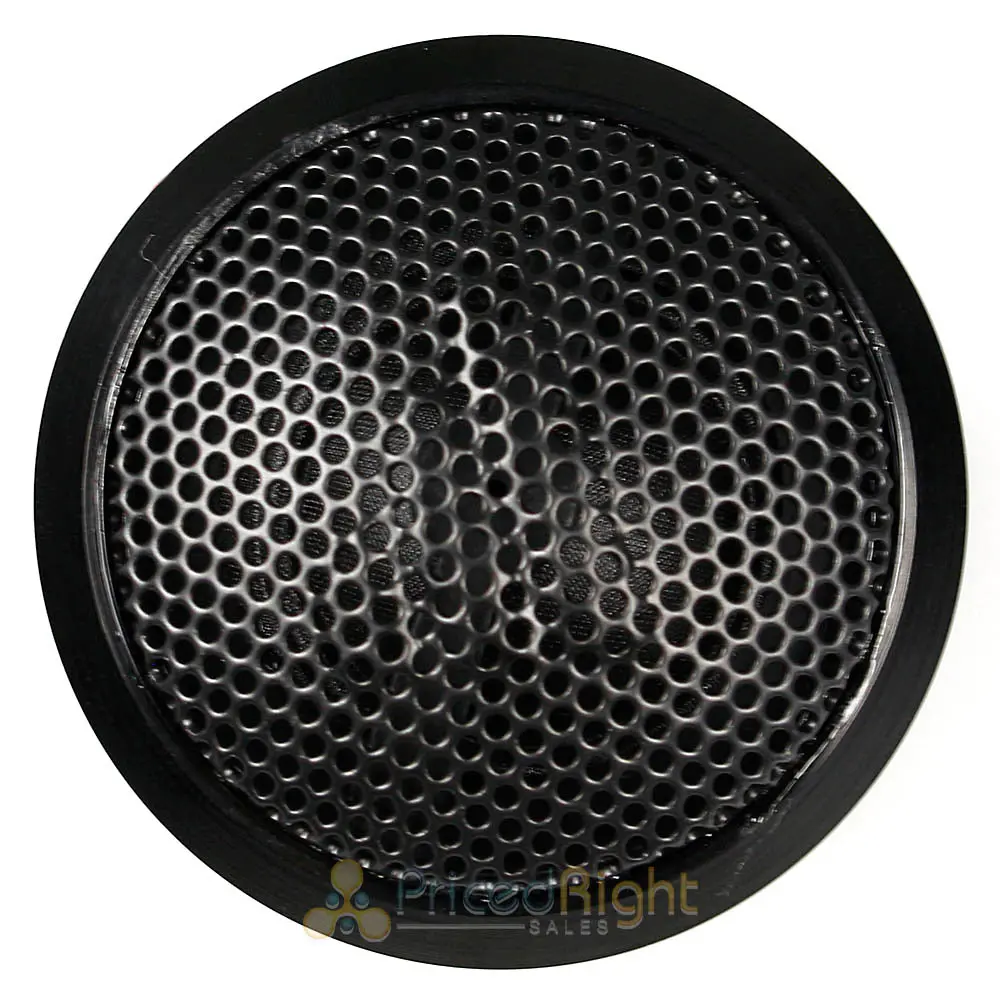

PRV 2″ Pro Audio Soft Dome Tweeter TW100SD-4 (Pair)

The Pair of TW100SD-4 cloth dome tweeter is designed ideally for 2-way system, as an upgrade for that standard factory tweeter. It is the perfect balance between high fidelity sound and a compact design, making this 28 mm dome tweeter a preferred choice for high-end car sound systems. Its cloth diaphragm combines with the durable, yet lightweight, Kapton™ voice coil former for sensitivity levels of up to 92 dB from 2,000 to 20,000 Hz.

Features

• 28 mm dome with 1″ voice coil – 4 ohms
• Neodymium Magnet inside machined housing
• Non-fatigue cloth diaphragm for extended frequency response
• 2 Mounting options (mounting bracket included)
• Detailed vocal reproduction on a wide frequency band response
• Rated AES Power Handling (RMS): 50 Watts
• Program Power: 100 Watts
• Sensitivity 2.00V at 1m: 92 dB
• Frequency Response at -10dB: 2,000 – 20,000 Hz
• Voice Coil Diameter: 1.0” (25 mm)
• Voice Coil Wire: CCAW
• Voice Coil Former Material: Kapton
• Diaphragm Material: Silk
• Magnet Material: Neodymium

Physical Specifications:

•Overall Depth: 0.95″ (24mm)
• Mounting Depth: 0.5″ (12.5mm)
• Overall Diameter: (2.13″ (54mm)
• Cutout Diameter: 1.9″ (48mm)
