Description

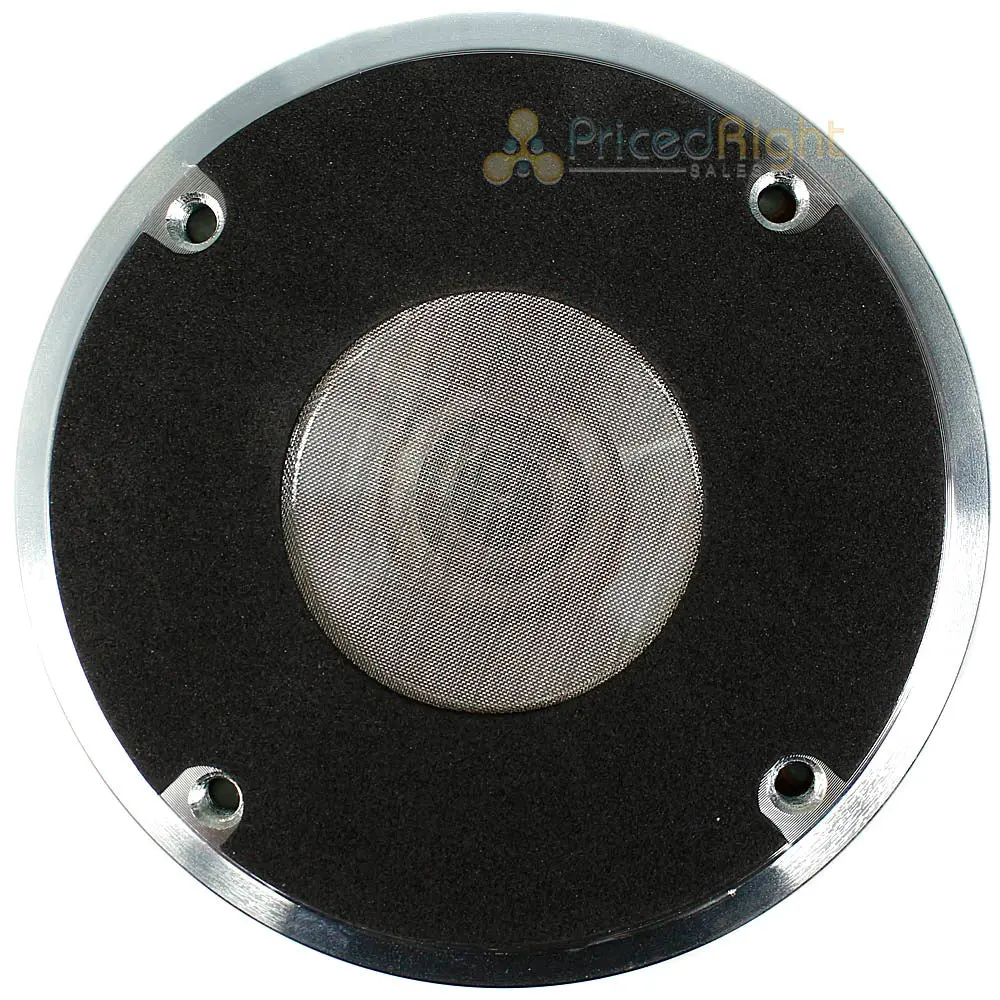

PRV Audio 2″ Pro Audio Titanium Compression Driver D3220Ti-Nd
The powerful D3220Ti-Nd PRV Audio pro audio compression driver features a 2″ exit supported by a 3″ voice coil that allows for accurate reproduction through 19kHz. The pure titanium diaphragm supported by a Kapton former results in a lightweight, yet durable design and offers a more natural sound for high SPL applications. The D3220Ti-Nd is designed to ensure quality sound and long-lasting play in your large environment applications.
Features
• Exit Throat Diameter: 2” (50 mm)
• Nominal impedance: 8 Ohms
• Rated AES Power Handling (RMS): 110 Watts
• Program Power: 220Watts
• Sensitivity 2.83V at 1m: 110 dB
• Frequency Response at -10dB: 1,600 – 19,000 Hz
• Voice Coil Diameter: 3”(76.2 mm)
• Voice Coil Wire: Copper
• Voice Coil Former Material: Kapton
• Diaphragm Material: Titanium
• Flux Density: 1.80 T
• Magnet Material: Neodymium
• Overall Diameter: 4.88″
• Overall Depth: 2.21″
