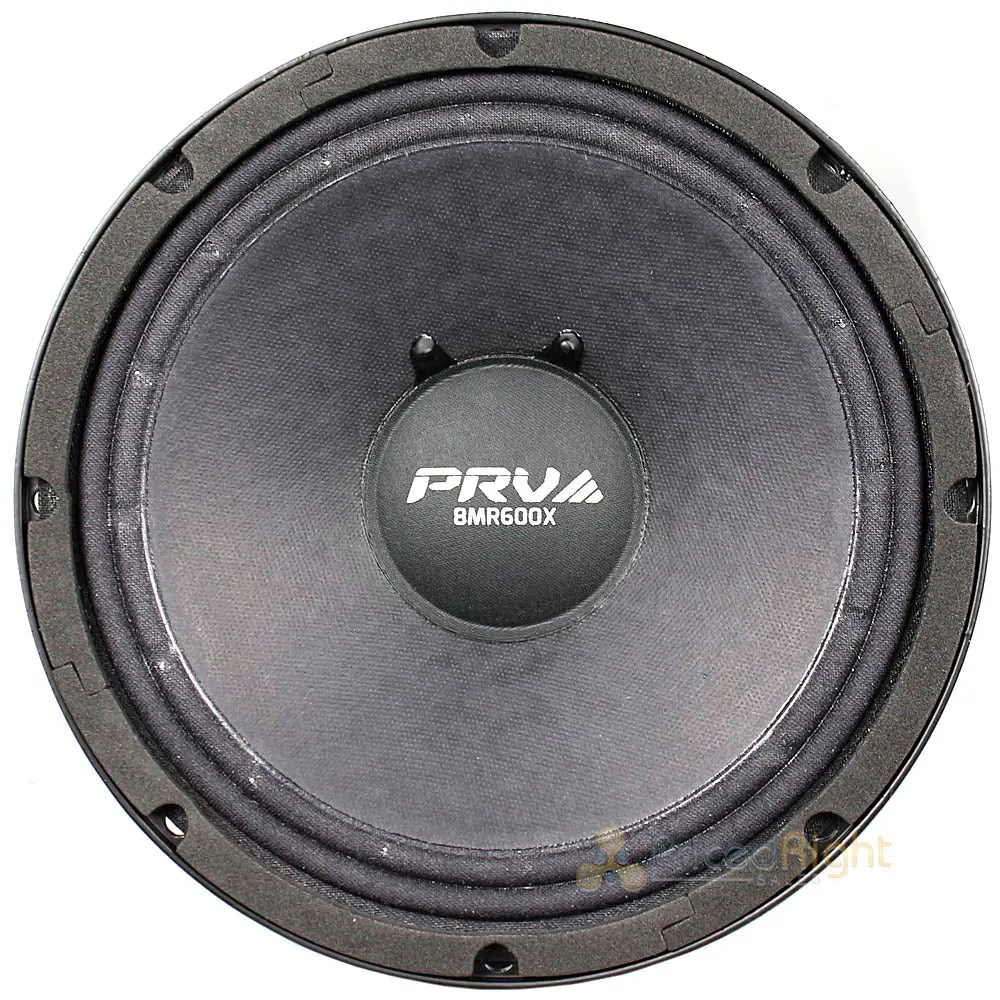

PRV Mid Range Loudspeaker 8 Ohms 8MR600X
Made to be a class-leading mid-range in the pro audio realm, this driver has a sensitivity of 98 dB. This low-frequency driver is optimized for professional audio or MI (musical instrument) speaker system applications. The powerful magnet assembly assures high flux concentration. The ventilated basket designed between the basket and the magnetic structure significantly improves thermal connection and heat dissipation, further increasing power handling and lowering power compression with a max power of 600 Watts. Capable of high output and low distortion, this mid-range is perfect for filling in the important mid-range response in any high output sound system.
Features
• 2″ DUAL layer CCAW voice coil wound on polyimide former, 8 ohms
• Ventilated voice coil gap reduces power compression
• High Xmax for more Midbass output
• 600 watts continuous program power rating makes the high acoustical output
• Excellent performance in 2-way or 3-way systems
• Unique double roll dimple suspension design
• Nominal Diameter: 8″ (203 mm)
• Nominal impedance: 8 Ohms
• Rated AES Power Handling (RMS): 300 Watts
• Program Power: 600 Watts
• Sensitivity 2.83V at 1m: 98 dB
• Frequency Response at -10dB: 85 – 8,500 Hz
• Voice Coil Diameter: 2.0″ (51 mm)
• Voice Coil Wire: CCAW
• Voice Coil Winding Depth: 14.5 mm
• Former Material: Polyimide
• Magnetic Gap Depth: 8.0 mm
• Frame Material: Die-cast aluminum
