High-Quality Carburetor Repair Kit Compatible with Farmall M, MV, and O6 Tractor Models – Includes Gaskets, Seals, and Components for 6513D and 6513DX Carburetors

Description

Premium Carburetor Repair Kit
Fits International Harvester IH Farmall M, MV, O6, OS6, T6, W6 Tractors all using 47387D, 47387DB, 47387DC, 50983D, 50983DB, 50983DC, 50983DD carburetor with throttle body # 6513D, 6513DX (all with 3.195″” throttle shaft length)
Specifications 3.195″” throttle shaft length

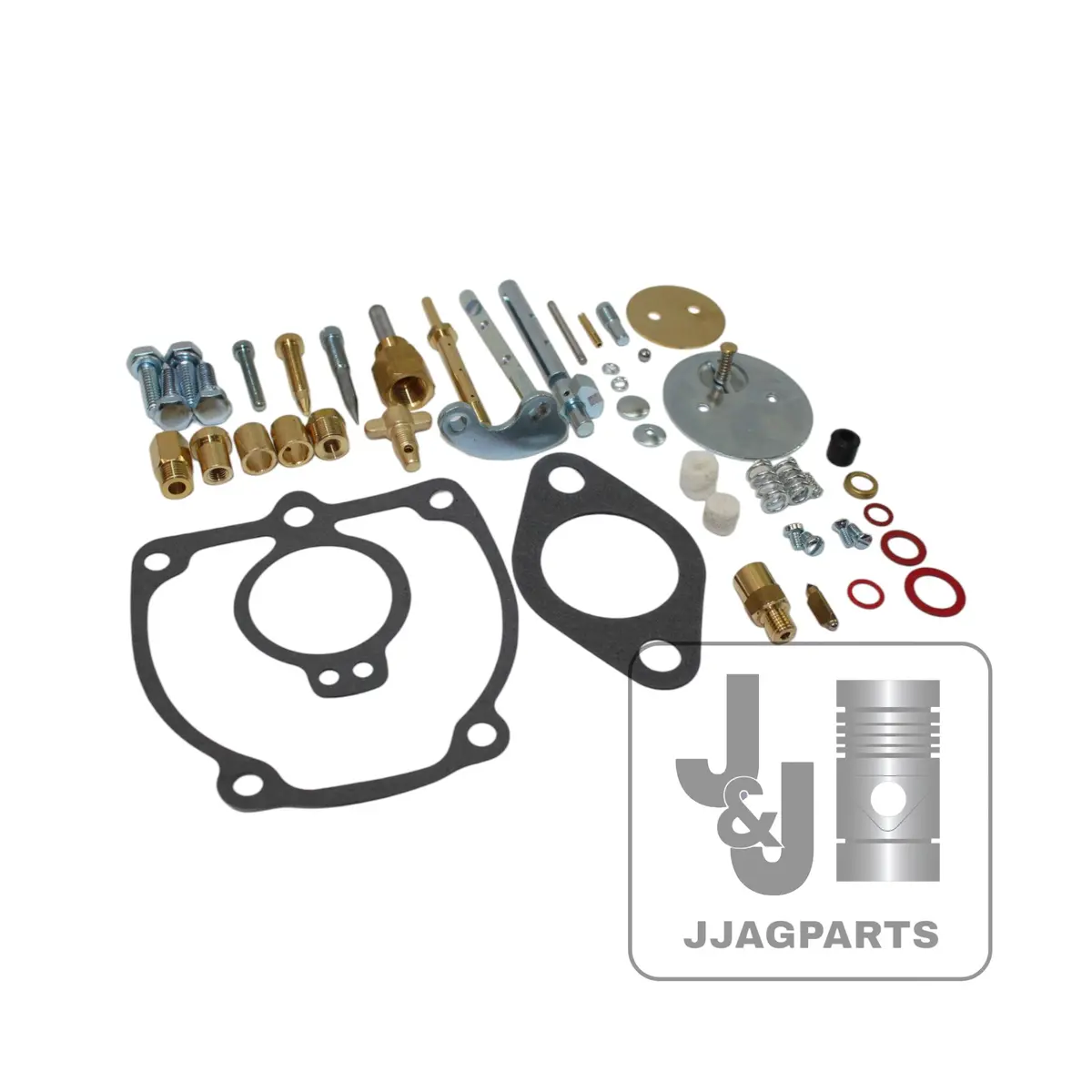

Premium carburetor repair kits include:throttle shaftthrottle plate choke shaft choke platethrottle shaft bushings and packing metering nozzle brass plugsfloat pin needle and seat gasketsfuel strainer
Includes parts shown in picture aboveFor reassembly purposes only, instruction sheet and diagram may show parts that are not included in this kit.
Make sure to find your carburetor manufacturer number in the list below. If your number is not listed, this kit is not the correct kit for your application.
Carburetor Numbers47387D,with throttle body 6513D or 6513DX, 47387DB,with throttle body 6513D or 6513DX, 47387DC,with throttle body 6513D or 6513DX, 50983D,with throttle body 6513D or 6513DX, 50983DB,with throttle body 6513D or 6513DX, 50983DC,with throttle body 6513D or 6513DX, 50983DD,with throttle body 6513D or 6513DX
Replacement Numbers 18377D, 186566, 21632D, 24685D, 24687DA, 24689D, 24693D, 24703DA, 25484D, 25948D, 29902DX, 31336D, 32615D, 352634R11, 352637R91, 354453R91, 354453R92, 354453R93, 413-414, 45148D, 45149DA, 46059D, 46184D, 47388DA, 47389DAX, 47391D, 47392D, 47395D, 47396DAX45, 47401D, 47402D, 47404DA, 492-11025, 49798D75, 52791R1, 530681R2, 56645DX, 56646D, 60947D, 67266DX, 9983TC
