Description

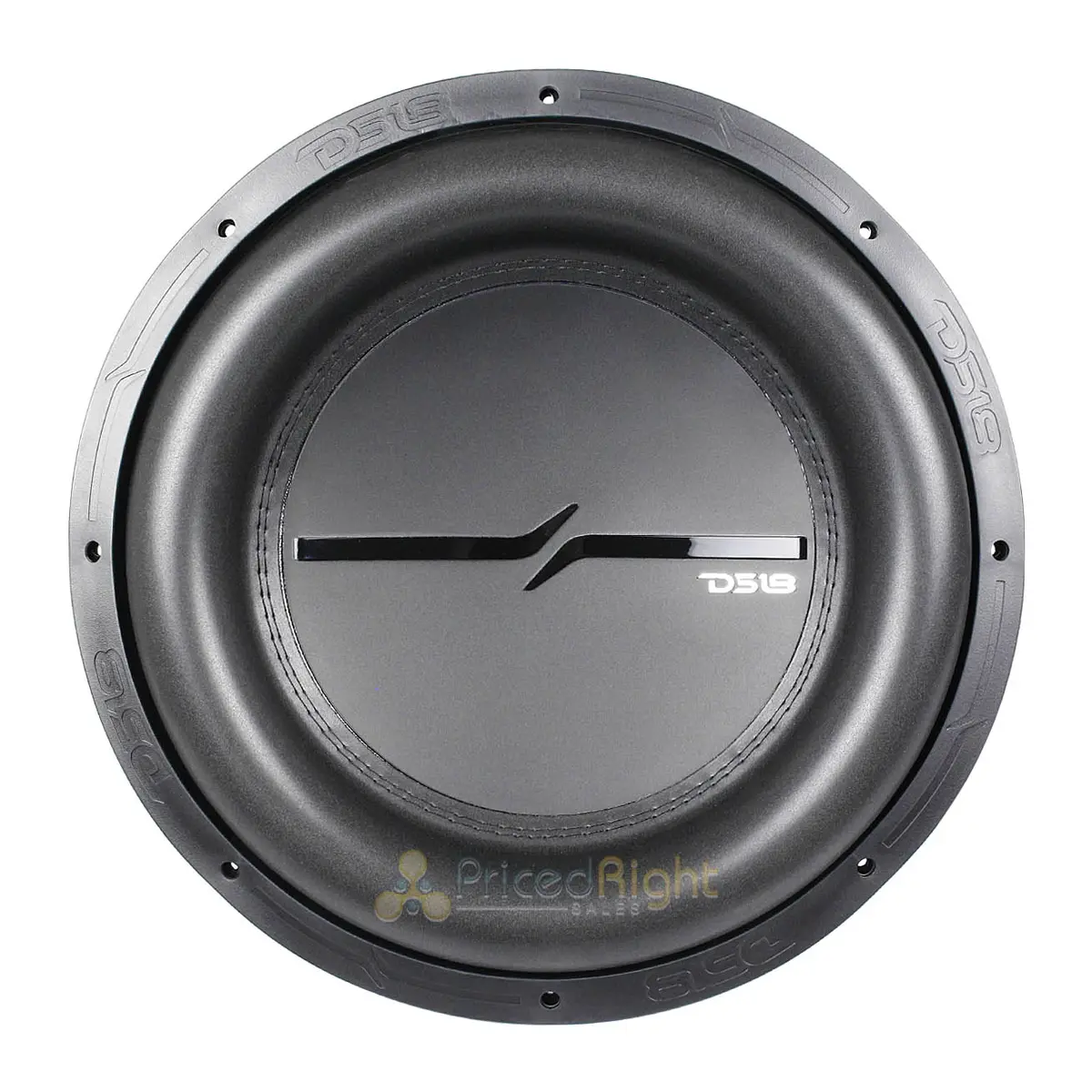

DS18 High Excursion 15″ Car Subwoofer 2000W DVC 4 Ohm Quad Stacked Magnets ZXI15.4D
More Power, More Bass!
Made for ground-shaking power, the ZXI15.4D is a newly-designed subwoofer that can only be defined as a monster of a machine. It packs a 3-inch voice coil designed to withstand high amounts of power with unparalleled efficiency, all while producing thunderous, distortion-free bass. But don’t get it twisted – this sub is versatile enough to play higher frequencies all the way down to 15Hz with incredible clarity and accuracy!
Features
• Long ferrite motor structure allows for maximum excursion and former clearance with quad stacked magnets
• High Excursion Surround to help produce a maximum 30.5mm (one-way) XMAX without damage to the cone and surround
• Conservatively rated at 1000W RMS Power Handling and 2000W MAX Power Handling so you can get the high-powered, thunderous bass you crave
• 3-inch voice coil to absorb and produce the highest heat-to-power ratio
• Low FS of 28Hz to allow ultra-low frequencies while retaining the versatility of a traditional subwoofer
TECHNICAL DETAILS
• Ultra-low frequency response of 15Hz-900Hz to ensure great lows
• Nominal Diameter: 15″ / 381mm
• Nominal Impedance: 4 + 4 ohms
• RMS Power Handling: 1000w
• MAX Power Handling: 2000w
• Sensitivity (1w/1m): 89dB
• Frequency Response: 15Hz-900Hz
• Recommended Lo Pass Crossover: 90Hz
MOTOR
• Voice Coil Diameter: 3″ / 76.2mm
• Voice Coil Former Material: Black Aluminum
• Winding Material: CCAW
• Cone Material: Non-Pressed Paper
• Dust Cap Material: PPI
• Surround Material: Foam
• Basket Material: Aluminum
• Basket Color/Finish: Sandblasted Black
• Magnet Material: Ferrite
• Magnet Weight: 232 Oz (4 x 58 oz)
• Displacement Volume: 5.82L / 0.2 ft3
MEASUREMENTS
• Overall Diameter: 15.65″ / 397.5mm
• Overall Depth: 10.51″ / 267mm
• Front Mount Baffle Cutout: 13.96″ / 354.7mm
• Mounting Depth: 8.72″ / 221.5mm
• Motor Diameter: 7.48″ / 190mm
