Description

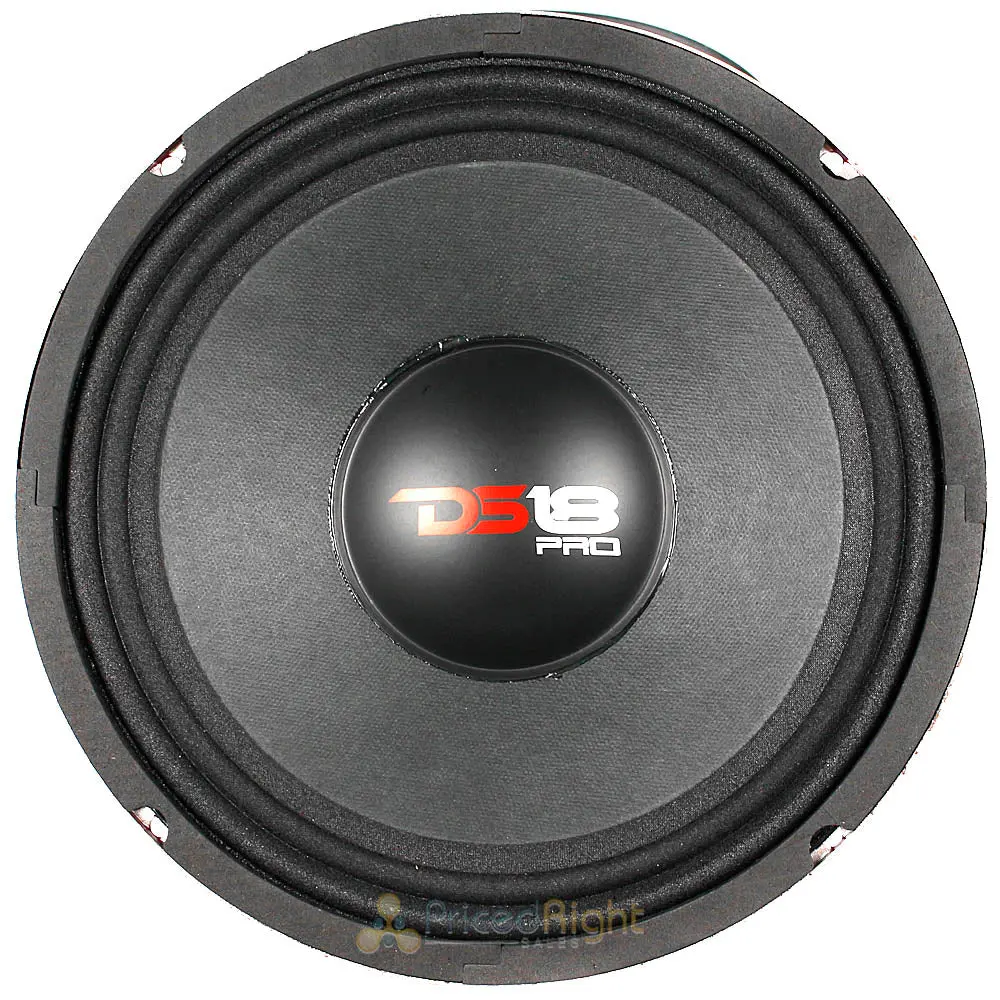

DS18 10″ Midrange Loudspeaker 4 Ohm Pro-X10.4M
A mid-range driver that can answer the call to handle the most significant part of the audible sound spectrum. A speaker that sounds great with just instrumentals and, even better with vocals. PRO-X10.4M delivers an impressive 600W Max Power with 300W RMS at 4 Ohms, enough to tackle a full range of audio. The 2” high-temperature CCAW voice coil can handle extreme heat and maintain its structural integrity meaning long life out of your speakers. Get the most out of your system by upgrading to a speaker that gives you everything you’re missing from your stock stereo. Discover what a true midrange speaker can do for you. During the focused R&D period of perfecting the PRO-EXL line, DS18 identified the opportunity to spawn off another line since there was a division amongst competition audiophiles and concert/”voceteo” audiophiles. Therefore, DS18 created the PRO audio line, which features a wide variety of midranges that produce concert-like sounds that will knock the wind out of you!
Features
• Overall diameter: 256mm/10.08″
• Baffle cutout diameter: 230mm/9.05
• Overall Depth: 103mm/4.06
• Nominal impedance: 4 Ohm
• Rms power handling: 300W
• Maximum Power Handling: 600W
• Sensitivity: 100.2 dB
• Frequency Response: 76-6.8 KHz
• Voice Coil Diameter: 50.8mm
• Winding Material: CCAW
• Magnet Weight : Ferrite 40 Oz
• Basket Material: Steel
Thiele & Small Parameters
• Fs: 76.3 Hz
• Re: 3.2 Ohm
• Qes: .886
• Qms:15.28
• Qts: .841
• Vas: 84.93dm
