Description

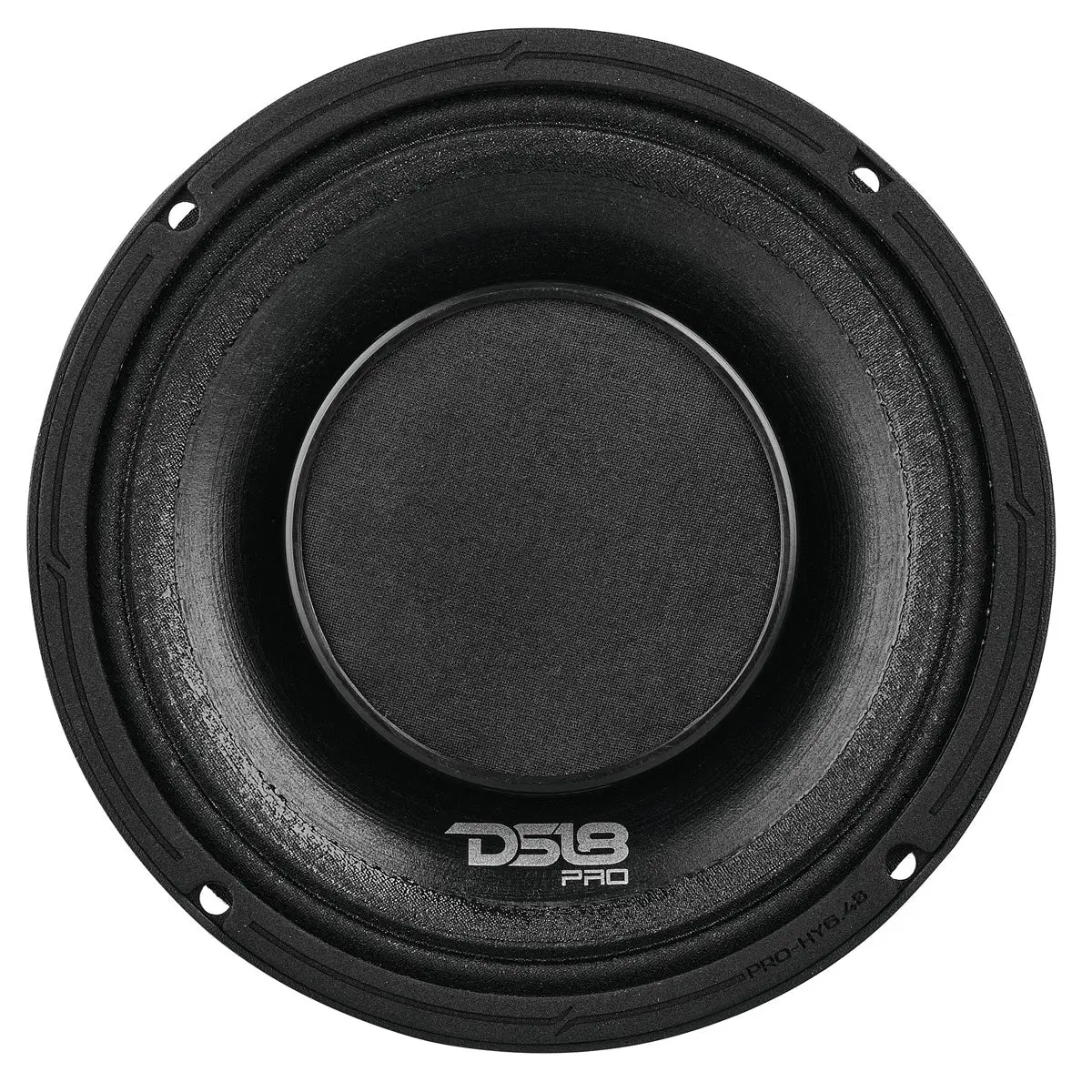

DS18 6.5″ Mid Range Speaker Hybrid with Built-in Driver 4 Ohm PRO-HY6.4B
DS18’s Hybrid speakers give you the best of both worlds of mids and highs combined into one pro audio combination speaker. This high-powered pro audio mega speaker combines a 6.5 high-volume midrange speaker with a high wattage driver attached to the rear to give you a full range of frequencies at an amazingly loud volume. These Hybrids have water-resistant cones to help battle elements and are perfect for people looking to place a high wattage, high volume loudspeaker together without having to separately mount an additional driver.
Features
• Hybrid design combines high wattage midrange and driver in one beautiful frame.
• High volume 6.5 and 1″ driver rated at 225w RMS and 450max for crazy loud volume in a full range of frequencies.
• Water resistant cone to help battle elements and moisture making them great for motorcycles, boats, and regular vehicles too!
• Nominal Diameter 6.5”
• Nominal Impedance 4 OHMS
• RMS Power Handling 225W
• MAX Power Handling 450W
• Sensitivity (1w/1m) 96dB
• Frequency Response 100Hz-20KHz
• Recommended Hi Pass Crossover 120 Hz
• Voice Coil Diameter 1.5” / 38.6 mm
• Voice Coil Former Material Glass Fiber
• Winding Material CCAW
• Cone Material Water Resistant Paper
• Surround Material Cloth
• Basket Material Aluminum
• Basket Color/Finish Glossy Red
• Magnet Material Ferrite
• Magnet Weight 27 oz
• Displacement volumen 0.047L
• Equivalent Volume Vas 2.211L
• Excursion (one way) Xmax 9.2 mm
• Free Air Resonance FS 199Hz
• Mechanical Factor Qms 5.96
• Electrical Factor Qes 1.524
• Total Factor Qts 1.214
• Mechanical Mass Mms 8.654g
• Mechanical Compliance Cms 73.792 mm/N
• BL Factor BL 4.769
• Voice Coil Inductance Le 4.22mH
• Cone Area Sd 145.26 Cm2
• DC Resistance Re 3.2 ohms
• Mechanical Mass w/o Air Mmd 6.7g
• Voice Coil Diameter 1” / 25.4 mm
• Voice Coil Former Material Kapton
• Winding Material CCAW
• Diaphragm Material Titanium
• Magnet Material Neodymium
• Horn Diameter 3.26″
• Overall Diameter 6.85″ / 174 mm
• Overall Depth 4.28″ / 108.8 mm
• Front Mount Baffle Cutout 5.91″ / 150 mm
• Mounting Depth 3.92″ / 99.5 mm
• Motor Diameter 4.65″ / 118 mm
