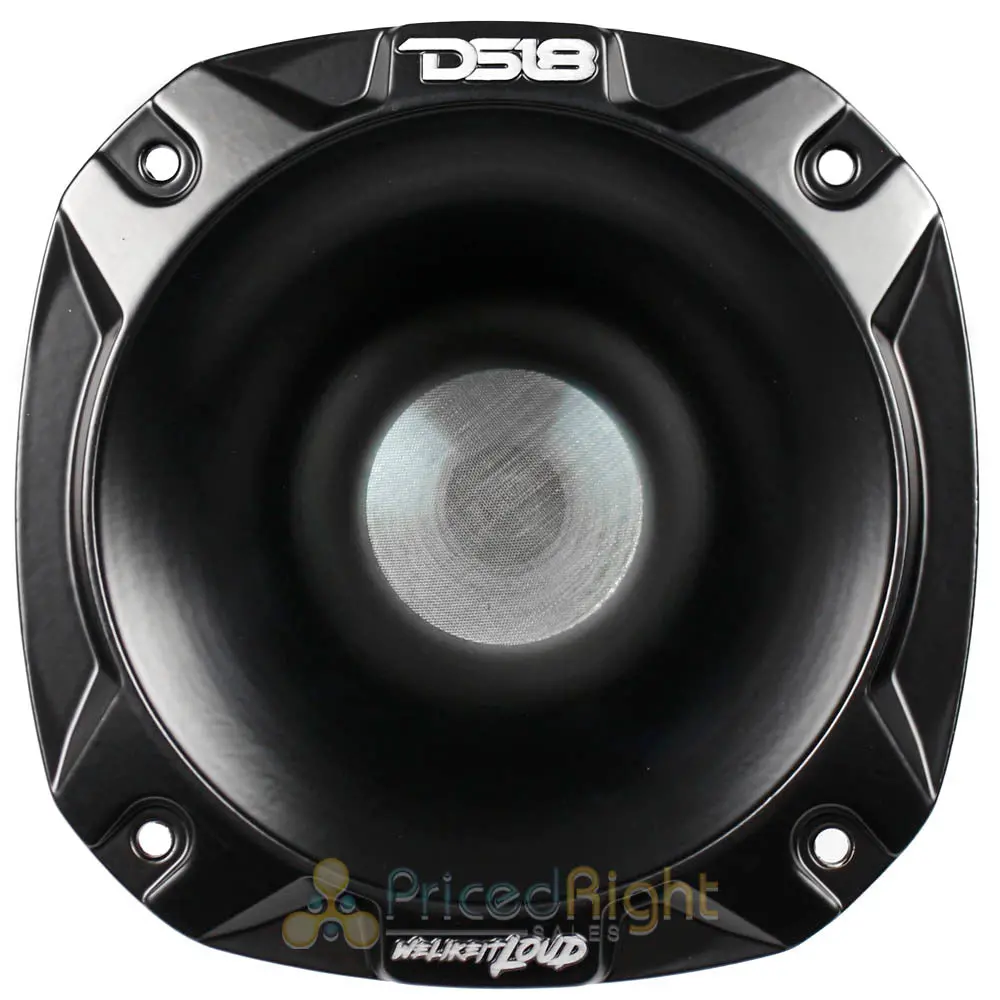

DS18 PRO-DKH1S 2-Inch 8-Ohm Shallow-Mount Compression Driver with Aluminum Horn

Description

DS18 PRO-DKH1S -2.03″ Titanium Compression Driver with Aluminum Horn
(Single)

This Titanium Compression Driver with Aluminum Horn is manufactured by DS18.  This features a 35 oz. High Strength Ferrite magnet with a Short 2.03″ KSV & Flat Wire Voice Coil.  Designed and Engineered in the US, this Compression driver is a top-of-the-line high-frequency driver found on the market today.  These deliver a lot of power with 320 watts RMS and 640 watts max power, this will surely take your system to the next level.
Specifications:

• Peak power handling: 640 Watts
• Program power handling: 320 Watts
• AES rated power: 160 Watts
• Sensitivity: 111 dB
• Frequency Response: 630Hz-20Khz
• Nominal Impedance: 8 Ohm
• Throat Diameter: 2″
• Recommended Hi pass crossover: 900Hz
• Diaphragm material: Titanium
• Magnet Material: Ferrite
• Magnet Weight: 35 Oz
• Bolt type: Bolt-on

Measurements:

• Overall Diameter: 7″/180mm
• Overall Depth: 5.3″/134.7mm
• Bolt pattern/Type: 5.5mm hole-6.3″/161mm Diameter
• Mounting Depth: 4.9″/125.8mm
• Mounting Hole Diameter: 5.7″/145mm
