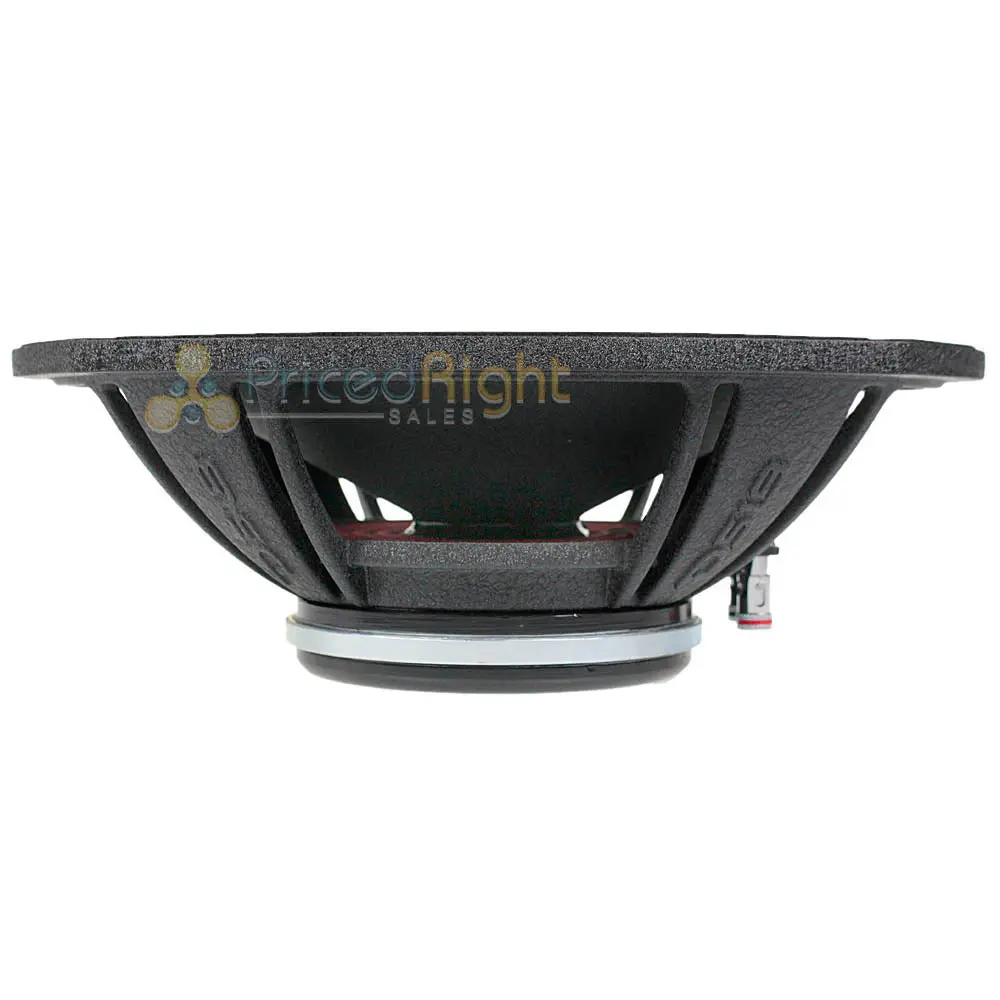

DS18 FR69NEO 6×9 Full-Range Bullet Speaker – 500W Peak, 4-Ohm Neodymium Driver with Protective Grill

Description

DS18 Pro 6×9″ Full Range Speaker Bullet Grill 500W 4 Ohm Neodymium PRO-FR69NEO

Versatility is paramount in large and small audio systems alike. Many DS18 fans have been wanting a more powerful 6×9 so they can get clear and loud sound from their 6x9s. DS18 obliged the overwhelming requests by releasing their PRO-FR69NEO. This Neodymium-driven midrange speaker will be the loudest 6×9 while also handling the most power. The great thing about NEO motor structures is you get better performance, higher wattage handling, better efficiency, and much lighter weight than a traditional speaker with a ferrite motor structure. This is a 4-ohm speaker that handles 250W RMS and 500W MAX power with a DB sensitivity rating of 98db. This neo also has a built-in bullet resonator to help the screaming mids range all the way from 100hz to 9000hz with extreme clarity and loudness.

Specifications

• Nominal Diameter: 6×9″
• Nominal Impedance: 4 ohms
• RMS Power Handling: 250w
• MAX Power Handling: 500w
• Sensitivity (1w/1m): 98dB
• Frequency Response: 100Hz-9KHz
• Recommended HI Pass Crossover: 120Hz
• Voice Coil Diameter: 38.6mm/1.5″
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Cone Material: Paper
• Bullet Material: Aluminum
• Surround Material: Cloth
• Basket Material: Aluminum
• Magnet Material: Neodymium
• Magnet Weight: 2.8Oz
• Displacement Volume: 0.0524L
• Overall Diameter: 9.44X6.57″
• Overall Depth: 3.31″
• Front Mount Baffle Cutout: 8.74X5.97″
• Mounting Depth: 2.874″
• Motor Diameter: 4.13″
