Description

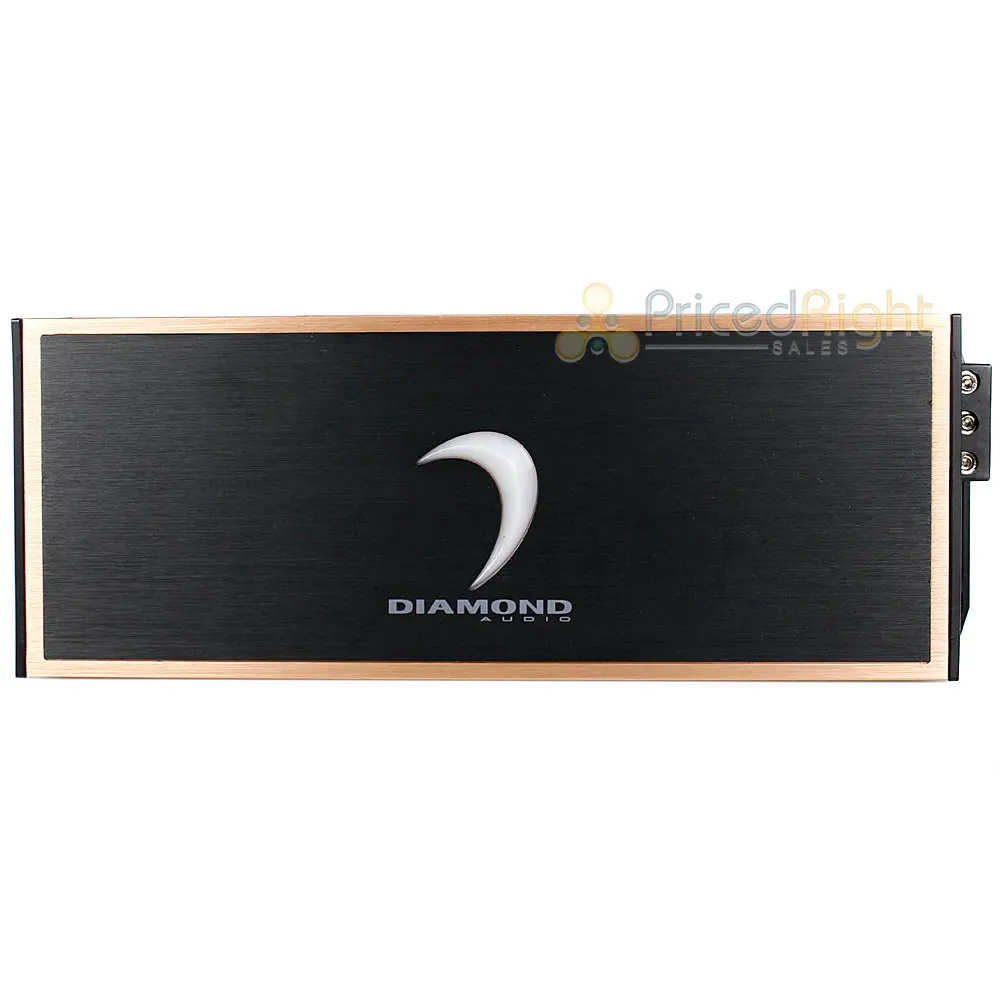

Diamond Audio 8 Channel Amplifier 1000RMS Micro88U
Elite sound quality and superior power in an ultra-compact chassis. The Diamond Audio Micro88U 8 channel power amplifier sets the standard for high-end Harley specific amplifiers. Featuring ultra-efficient full range class D topology and ICAD circuit that provides superior overload protection, these compact amplifiers deliver huge power for their size. Its compact design not only has the juice to power your system but will also save you a ton of space in your car or transport whatever you need it.
Features
• Full Range Class D IR Chipset
• DirectFET Power Mosfet Output Stage
• SMD Technology on 4 layer Glass PC Board
• Conformal Coated PCB assembly for added water resistance
• ICAD circuit provides superior overload protection
• Frequency response 10 Hz – 30kHz (Mono Block 10 Hz – 350Hz)
• Variable 12db crossovers
• MICRO Bass boost +12DB @45HZ
• Premium 8 gauge power connections
• Multi channels / Mono channel
Power Specifications:
• RMS Power @ 2 Ohm: 100W x 8 Channels
• RMS Power @ 4 Ohm: 75W x 8 Channels
• Bridged (Mono 4 Ohm): 200W x 2
