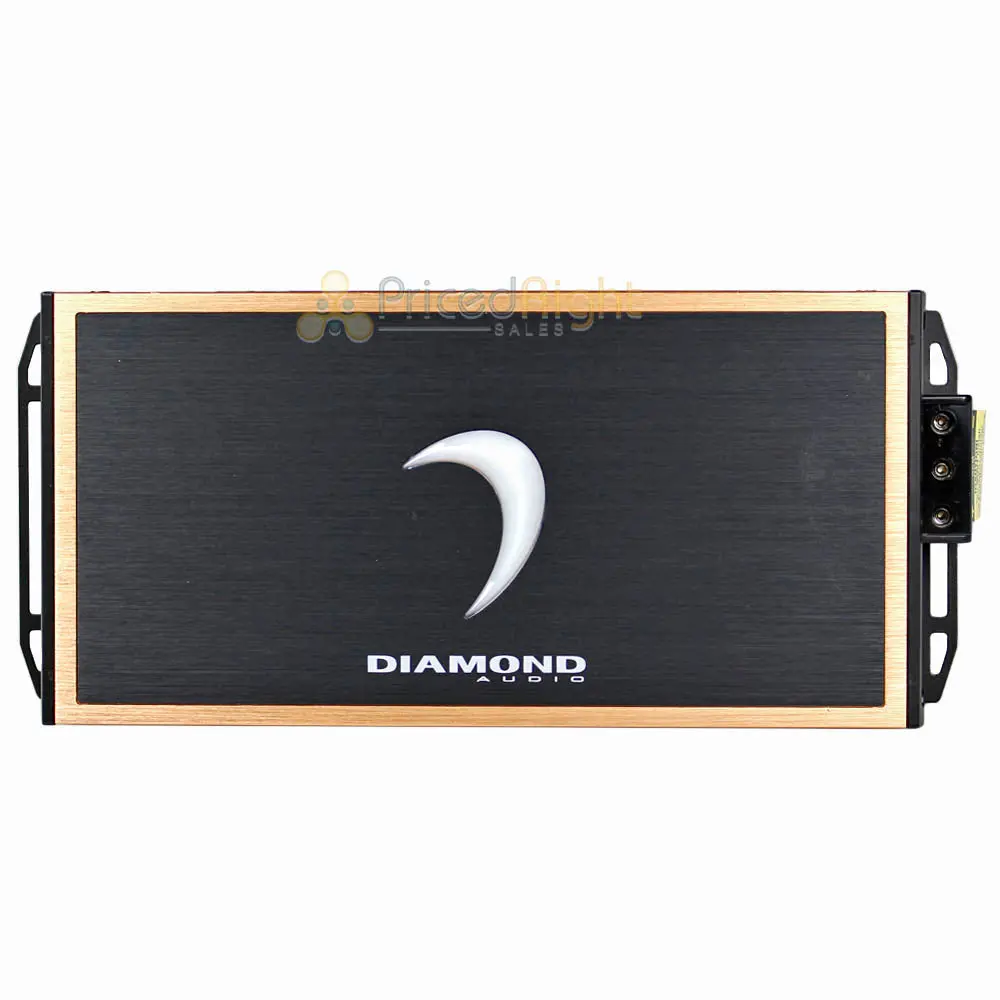

Diamond Audio Monoblock Amplifier Full Range Class D MICRO81U
The all-new micro8 line of amplifiers is essentially the same amplifier as the very popular Micro series amplifiers but with more power. The Micro81U has a max power of 600W with an ICAD circuit that provides superior overload protection so you play for extended periods without worry. Its compact design not only has the juice to power your system but will also save you a ton of space in your car or transport whatever you need it.
Specifications
• RMS Power Rating 2 Ohm: 400 x 2
• RMS Power Rating 4 Ohm: 240 x 2
• Mono Power Rating 1 Ohm: 600 x 1
• Max Power: 600 Watts
• THD: 0.5%
• Signal to Noise Ratio: >85dB
• Dampening Factor: >250
• Channel Separation: >55dB
• Overall Efficiency: >88%
• Input Sensitivity: 0.2V-10.0
• Dimensions: 9″ x 4″ x 1.64″
Features
• Full Range Class D IR Chipset
• DirectFET Power Mosfet Output Stage
• SMD Technology on 4 layer Glass PC Board
• Conformal Coated PCB assembly for added water resistance
• ICAD circuit provides superior overload protection
• Frequency response 10 Hz – 30kHz (Mono Block 10 Hz – 350Hz)
• Variable 12db crossovers
• MICRO Bass boost +12DB @45HZ
• Premium 8 gauge power connections
• Mono channel
• Remote Bass Knob (Included with MICRO81U/MICRO82U)
