Description

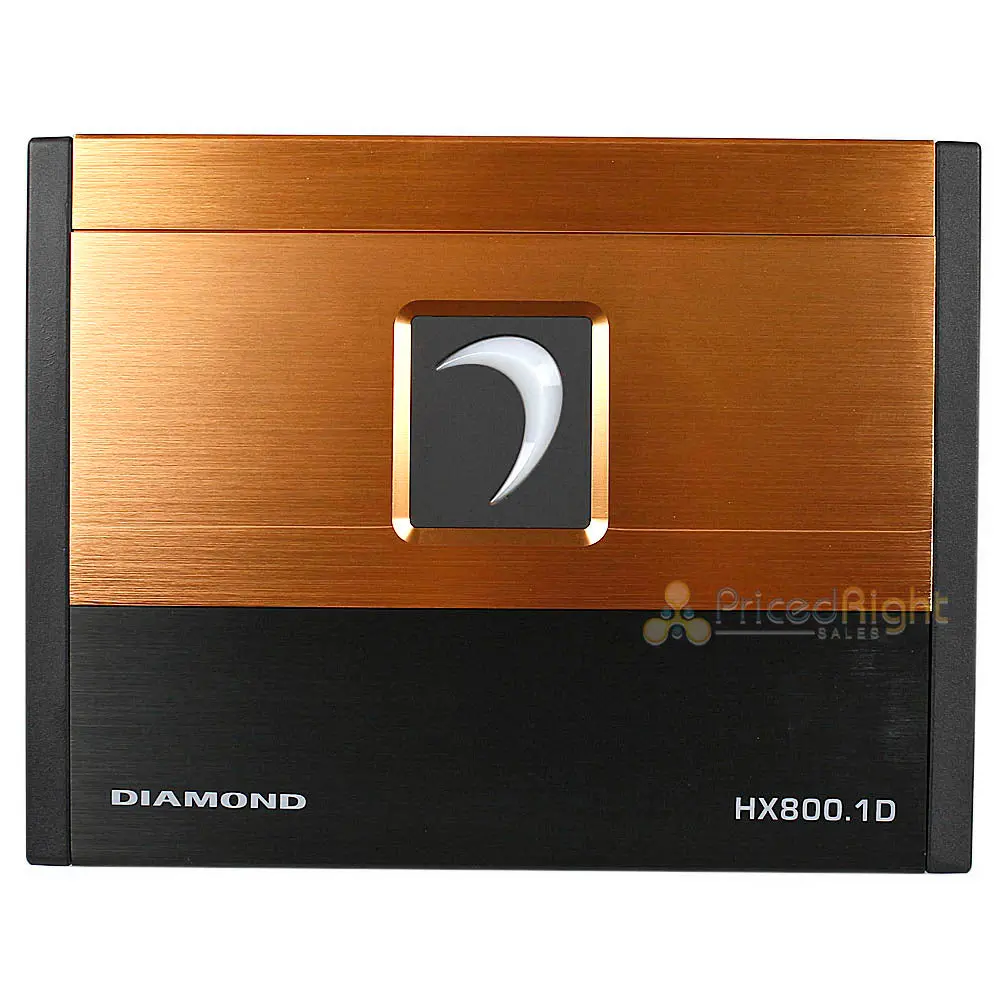

Diamond Audio 1 Channel Digital Amplifier Hx800.1D
The Diamond Audio HX800.1D Mono Block Amp rated at 800 watts max is specifically designed for the system that needs extreme power. This amp will push any subwoofer you give it, and it’ll do it all while staying cool with an anodized extruded aluminum heat sink which provides superior thermal performance.
Features
• Total power: 800W
• Power @ 4 Ohm: 340W1ch
• Power @ 2 Ohm: 560W1ch
• Power @ 1 Ohm: 800W1ch
• THD: 0.06%
• Frequency response: 10Hz-300Hz-(3dB)
• Signal to noise ratio: 95dB
• Channel separation: 50dB
• Overall efficiency: 80%
• Input sensitivity: 0.2-5.0V
• Dimensions: 9.9″ x 6.8″ x 2.3″
• Anodized extruded aluminum heat sink provides superior thermal performance
• 4 Layer PCB board with balanced differential inputs
• Full range class D IR chipset
• “Snap” Capacitors used throughout the circuit
• Audiophile grade high tolerance components
• Spring steel FET clips provide a cleaner board design
• Illuminated Logo/Fully concealed mounting
• Output clip indicators for precise set up
• Fine tuned fully variable crossovers and phase control
• Top mounted controls for convenient amplifier adjustment
