Diamond Audio DMD122 12-Inch Subwoofer — 400W Max Power, Dual 2-Ohm Voice Coils

Description

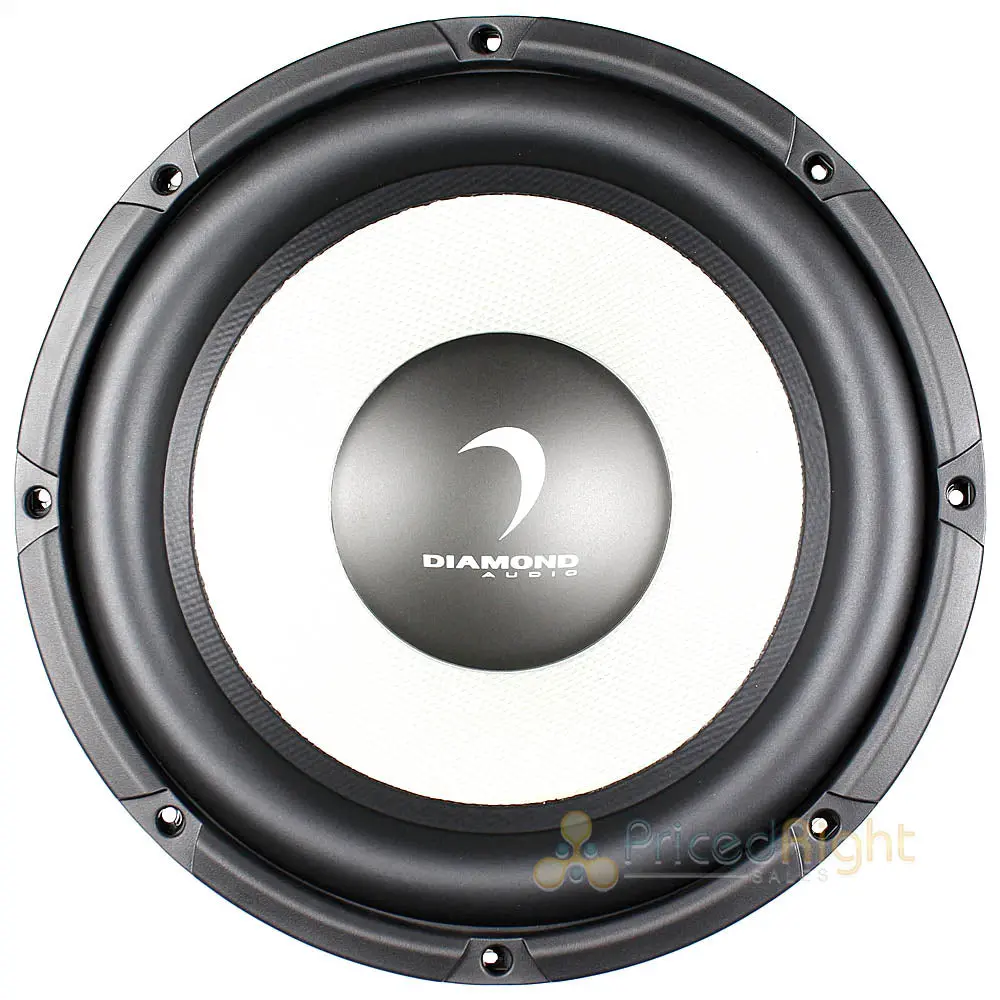

Diamond Audio 12″ Subwoofer Dual 2 Ohm DMD122

The Diamond Audio 12″ full-size Dual 2 Ohm subwoofer designed to get you maximum performance when it comes to bass clarity. It has a high grade rolled edged 4 leg black powder coat stamped frame. The Klippel optimized motor and suspension symmetry and high-density NBR half-roll make this sub-optimized for linear travel. Having a vented pole piece for cooler operation, you will be able to feel the max output of 400 watts max power wherever you go.

Features

• Black polypropylene fiber weave cone
• High grade rolled edged 4 leg black powder coat stamped frame
• Oversized black chrome push terminals
• Black spider with woven tinsel leads
• Black PVC wrap around the mounting gasket
• Vented pole piece for cooler operation
• Klippel Optimized motor and suspension symmetry

Specifications

• Total Diameter: 12.57″/267.9mm
• Mounting Diameter: 11.10″/231.5mm
• Hole Diameter: 11.90″/251.0mm
• Mounting Diameter: 5.93″/131.5mm
• Magnet Diameter: 5.57″/141.4
• Dual 2 Ohm

Thiele/Small Parameters

• SPL (dB): 86.0
•Re (Ohm): 3.85
• Qms: 6.0
• Qes: 0.75
• Qts: 0.67
• Fs (Hz): 33.5
• Vas (L): 98.3
• Cms (mm/N): .14
• Mms (g): 157
• Sd (M²): 0.050
• BL (T*M): 13
• Xmax (mm): 8.1
• Pwr (W) Nom/Max: 200/400
