Diamond Audio DES84 8-Inch Elite Series Subwoofer – 500W Max Power, 4-Ohm Impedance

Description

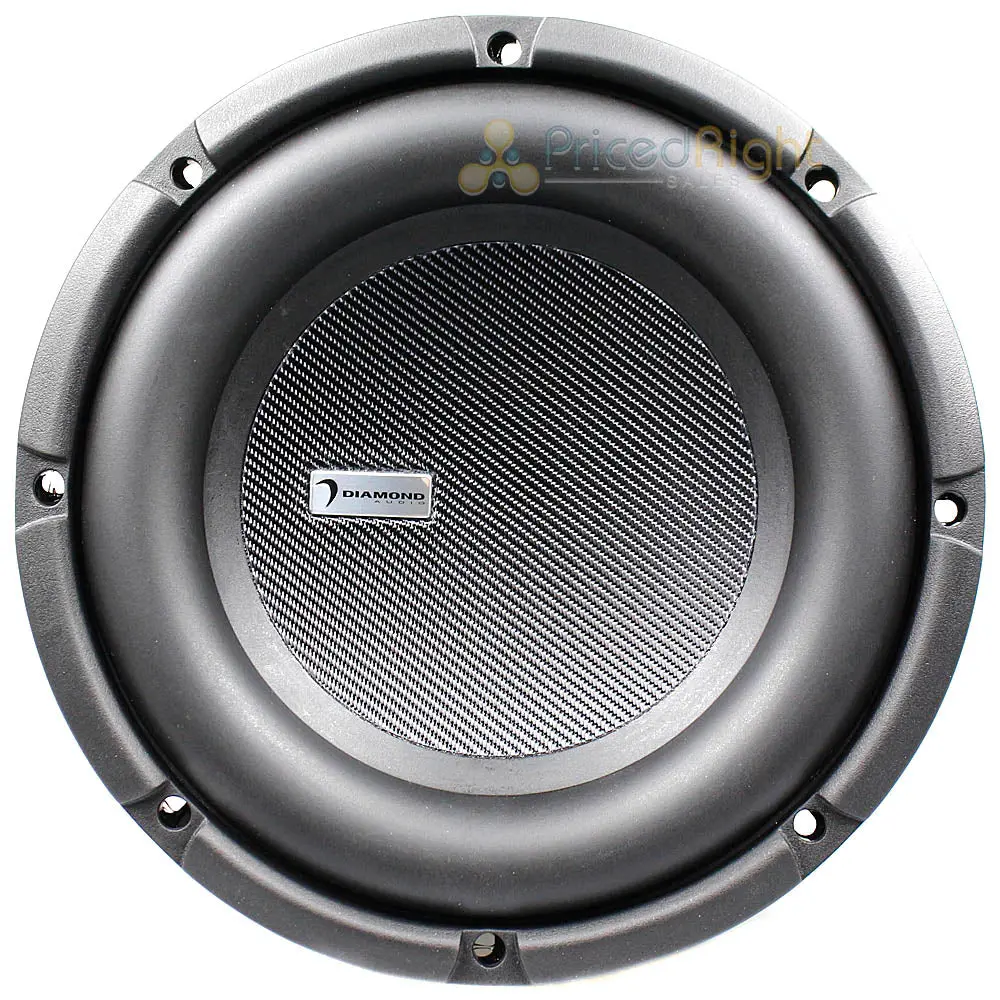

Diamond Audio 8″ Subwoofer 4 Ohm DES84

Diamond Elite subwoofers deliver tremendous bass in a variety of enclosure designs making them an extremely versatile subwoofer. They sound dynamic and are precision crafted to withstand the demands exerted by long-extended listening sessions. Diamond Elite series utilizes a vented pole piece for cooler operation and klippel optimized motor and suspension symmetry which will be able to help you feel the max output of 500 watts max power wherever you go.

Features

• Nominal Impedance (ohms) 4
• Xmax – Inch(mm) 18.0
• Fs-Free Air Resonance (Hz) 40.0
• Vas (Liter) 8.20
• Qts 0.48
• Qes 0.51
• Qms 11.00
• Re (Ω)[series] 6.20
• Sd (cm²) 196
• Cms (mm/N) 0.150
• Mms (g) 105.0
• BL (T*M) 18.0
• SPL (db) 82.1
• Pwr (W) NOM/MAX 250/500
• Mounting Depth 4.4” (112) in. (mm)
• Total Diameter 8.28” (210.4) in. (mm)
• Mounting Diameter (inch/mm) 7.12” (181) in. (mm)
• Screw Hole Diameter 7.67” (195) in. (mm)
• Magnet Diameter (E) 6.1” (155) in. (mm)
