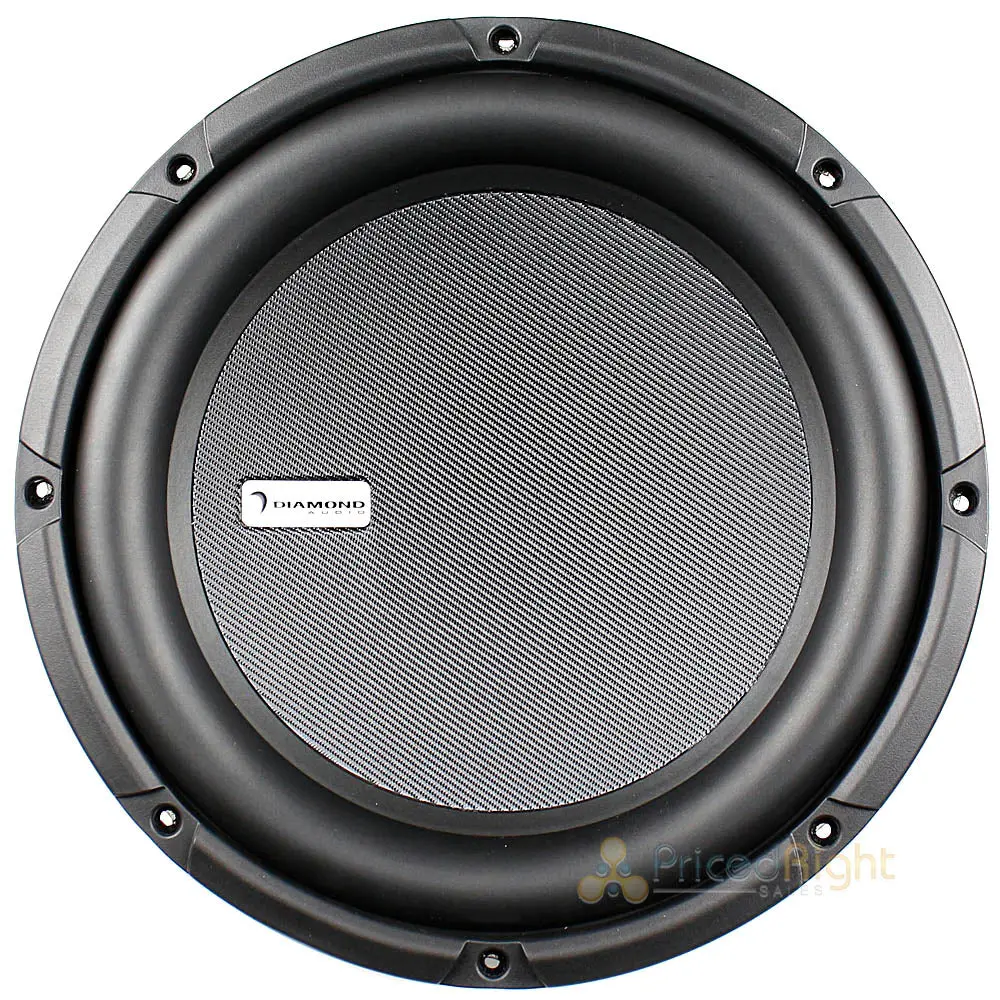

Diamond Audio DES124 Elite Series 12-Inch 4-Ohm Subwoofer – 1000W Maximum Power

Description

Diamond Audio 12″ Subwoofer Elite Series 4 Ohm DES124

Diamond Elite subwoofers deliver tremendous bass in a variety of enclosure designs making them an extremely versatile subwoofer. They sound dynamic and are precision crafted to withstand the demands exerted by long-extended listening sessions. Diamond Elite series utilizes a vented pole piece for cooler operation and klippel optimized motor and suspension symmetry which will be able to help you feel the max output of 1000 watts max power wherever you go.

Features

• True fiber weave paper backed parabolic cone
• High grade rolled edged 4 legs black powder coat stamped frame
• Oversized black chrome push terminals
• Dual mirror image spider with woven tinsel leads
• Black PVC wrap around the mounting gasket
• Vented pole piece for cooler operation
• Klippel Optimized motor and suspension symmetry
• Nominal impedance: 4 Ohm

Thiele/Small Parameters

• SPL (dB):82.8
• Re (Ω) [series]:6.30
• Qms:9
• Qes:0.96
• Qts:0.87
• Fs (Hz):34.0
• Vas(L):30.0
• Cms (mm/N):0.08
• Mms (g):263
• Sd (m2):0.050
• BL (T*M):19.3
• Xmax:15.7
• Power Handling (W) nom/max:500/1000

Measurements

• Total Diameter: 12.57″
• Mounting Diameter: 11.00″
• Hole Diameter: 11.90″
• Mounting Depth: 6.63″
• Magnet Diameter: 6.51″
