Description

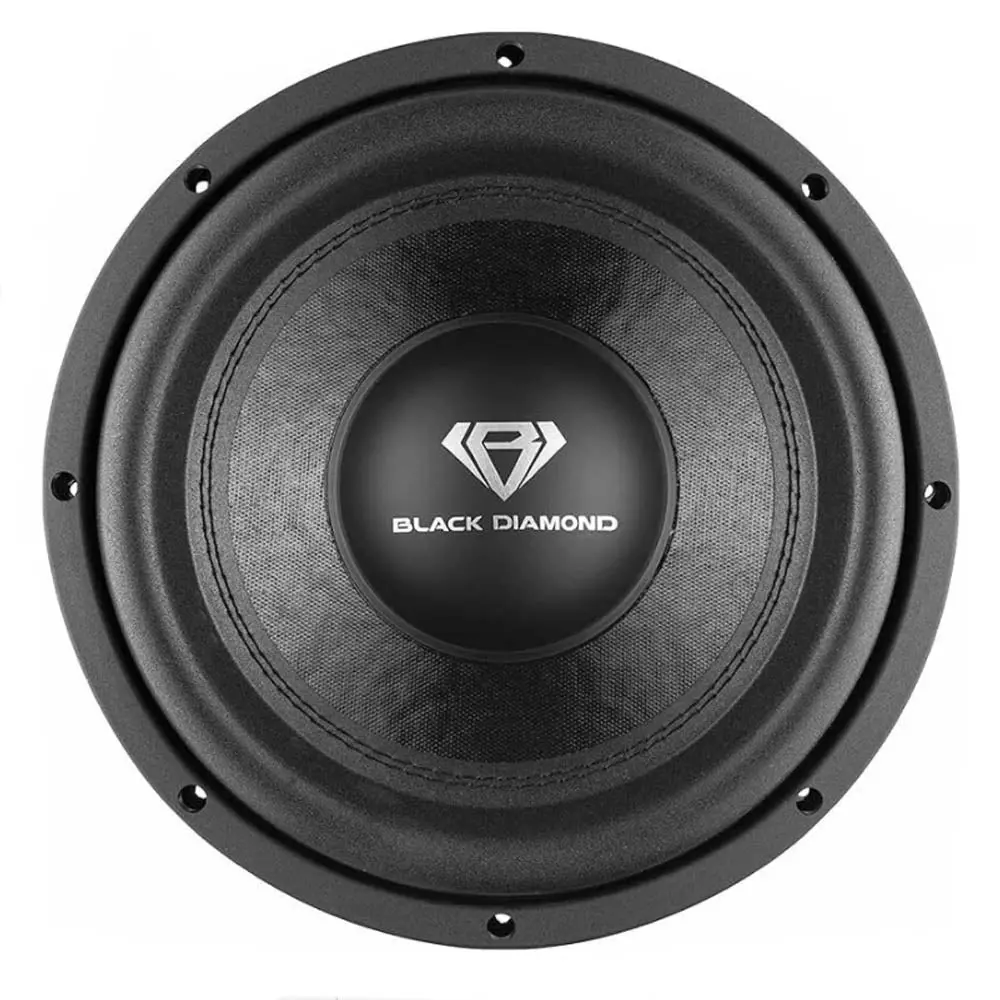

Black Diamond 10″ Subwoofer Dual 4 Ohm DIA-10D4
This sleek Black Diamond 10″ Subwoofer can handle an impressive 440 watts max power and has a 4 Ohm Dual Aluminum Voice Coil. Foam surround and steel basket for durability and longevity. Sensitivity rating of 89.5 dB to get the most out of your music. Experience the excellence of Black Diamond with this 10″ powerhouse.
Features
• Nominal Diameter: 10″
• Nominal Impedance: 4+4 Ohms
• RMS Power Handling: 220W
• MAX Power Handling: 440W
• Sensitivity: 89.5dB
• Frequency Response: 40Hz-4.5KHz
• Recommended Lo Pass Crossover: 90Hz
• Voice Coil Diameter:2″/50.8mm
• Voice Coil Former Material: Aluminum
• Winding Material: CCAW
• Cone Material: Non-Pressed Paper
• Dust Cap: Paper
• Surround Material: Foam
• Basket Material: Steel
• Basket Color – Finish: Black
• Magnet Material: Ferrite
• Magnet Weight: 45 oz
• Displacement Volume: 1.27L
• Equivalent Volume: 39.05L
• Excursion: 13.5mm
• Free Air Resonance: 40Hz
• Mechanical Factor: 5.479
• Electrical Factor: 0.831
• Total Factor: 0.725
• Moving Mass: 125.124g
• Compliance: 0.046mm/N
• Force Factor: 12.045
• Voice Coil Inductance: 0.932mH
• Diaphragm Area: 365.25cm2
• Dc Resistance: 3.6+3.6 ohms
• Efficiency Bandwidth Product: 48.13
• Overall Diameter: 10.24″/260mm
• Overall Depth: 5.71″/145mm
• Front Mount Baffle Cutout: 9.13″/232mm
• Motor Diameter: 5.90″/150mm
